Porsche Diagnose Tool PDT999

The story: After the success of the (PC based) UDT999 tool, people ask me to build a handheld device like the Bosch Hammer KTS301. A unit which fits easily in your glovebox to carry with you all the time.



PDT999.


Characteristics of the PDT999:

  • Read ECU's from 928 (S4/GT/GTS) / 944 S2 / 964 (C2/C4) / 968 and 993.
  • Large 4x20 characters display (57 mm x 20 mm).
  • White characters, blue background OR black characters and green background, both with backlight.
  • Complete menu controlled.
  • Only four buttons: menu-up, menu-down, select/back and OnOff.
  • Standard connection to the car.
  • Long cable with 19P connector (optional long cable with 12P connector (928 S4 first series), optional cable with 16P connector (993 > 1995)).
  • Supply voltage from the car.
  • Dimension box: 185 mm x 85 mm x 28mm.



    • You can upload the user manual of the PDT999 from here:

    User Manual pdf PDT999 (uploading will take some time).


    Feature list PDT999


    p&a = Passive (ignition on only) and Active (when engine also runs).

    928:
    ECU Read & Clear faultcodes ECU info Input Signals Actual Values Drive Links Sensors Other
    LH Yes Yes p&a p&a Yes n.a. Idle adaptation & enable dashboard
    EZK Yes Yes n.a. Yes n.a. Yes Knock count
    PSD Yes Yes n.a. n.a. Yes n.a. n.a.
    RDK Yes Yes Yes n.a. n.a. Yes Trip info.
    ALARM Yes Yes Yes n.a. Yes n.a. Land coding
    AIRBAG Yes Yes n.a. n.a. n.a. n.a. Downtime & crash data

    944:
    ECU Read & Clear faultcodes ECU info Input Signals Actual Values Drive Links Sensors Other
    MOTRONIC Yes Yes Yes Yes Yes n.a. Knock count & idle adaptation
    ALARM Yes Yes Yes n.a. Yes n.a. Land coding
    AIRBAG Yes Yes n.a. n.a. n.a. n.a. Downtime & crash data

    964:
    ECU Read & Clear faultcodes ECU info Input Signals Actual Values Drive Links Sensors Other
    MOTRONIC Yes Yes Yes Yes Yes n.a. Knock count & idle adaptation
    ALARM Yes Yes Yes n.a. Yes n.a. Land coding
    AIRBAG Yes Yes n.a. n.a. n.a. n.a. Downtime & crash data
    CLIMATE Yes Yes Yes Yes Yes Yes n.a.
    PDAS (C4) Yes Yes Yes n.a. Yes (bleed) n.a. n.a.
    TIPTRONIC Yes Yes Yes Yes Yes n.a. Land coding

    968:
    ECU Read & Clear faultcodes ECU info Input Signals Actual Values Drive Links Sensors Other
    MOTRONIC Yes Yes Yes Yes p&a n.a. Knock count
    ALARM Yes Yes Yes n.a. Yes n.a. Land coding
    AIRBAG Yes Yes n.a. n.a. n.a. n.a. Downtime & crash data
    TIPTRONIC Yes Yes Yes Yes Yes n.a. Land coding

    993:
    ECU Read & Clear faultcodes ECU info Input Signals Actual Values Drive Links Sensors Other
    MOTRONIC Yes Yes Yes Yes p&a n.a. n.a.
    ALARM Yes Yes Yes n.a. Yes n.a. Land coding
    AIRBAG Yes Yes n.a. n.a. n.a. n.a. Downtime & crash data
    CLIMATE Yes Yes Yes Yes Yes Yes n.a.
    TIPTRONIC Yes Yes Yes Yes Yes n.a. Land coding
    ABS5/ABD Yes Yes n.a. Yes Yes n.a. Bleed
    ABS5 Yes Yes n.a. Yes Yes n.a. No bleed !!




    Delivery, warrant and prices

    When you order the tool, the following "parts" will be delivered:
  • PDT999 unit.
  • Cable from PDT999 unit - 19P.
  • Optional is: 12P-cable for 928 model '88.
  • Optional is: 16P-cable for 993 model >'95.


    • Feel free to ask about our pricing about the PDT999.

    We offer a 1 year warranty. Any obvious abuse of the PDT999 will render the warranty invalid. Modifications to the PDT999 are beyond our control, and are at owners' risk. Please email us for a quotation for your PDT999. Our preferred payment method is bank transfer (or Paypal for our international clients).

    Screenshots of the PDT999

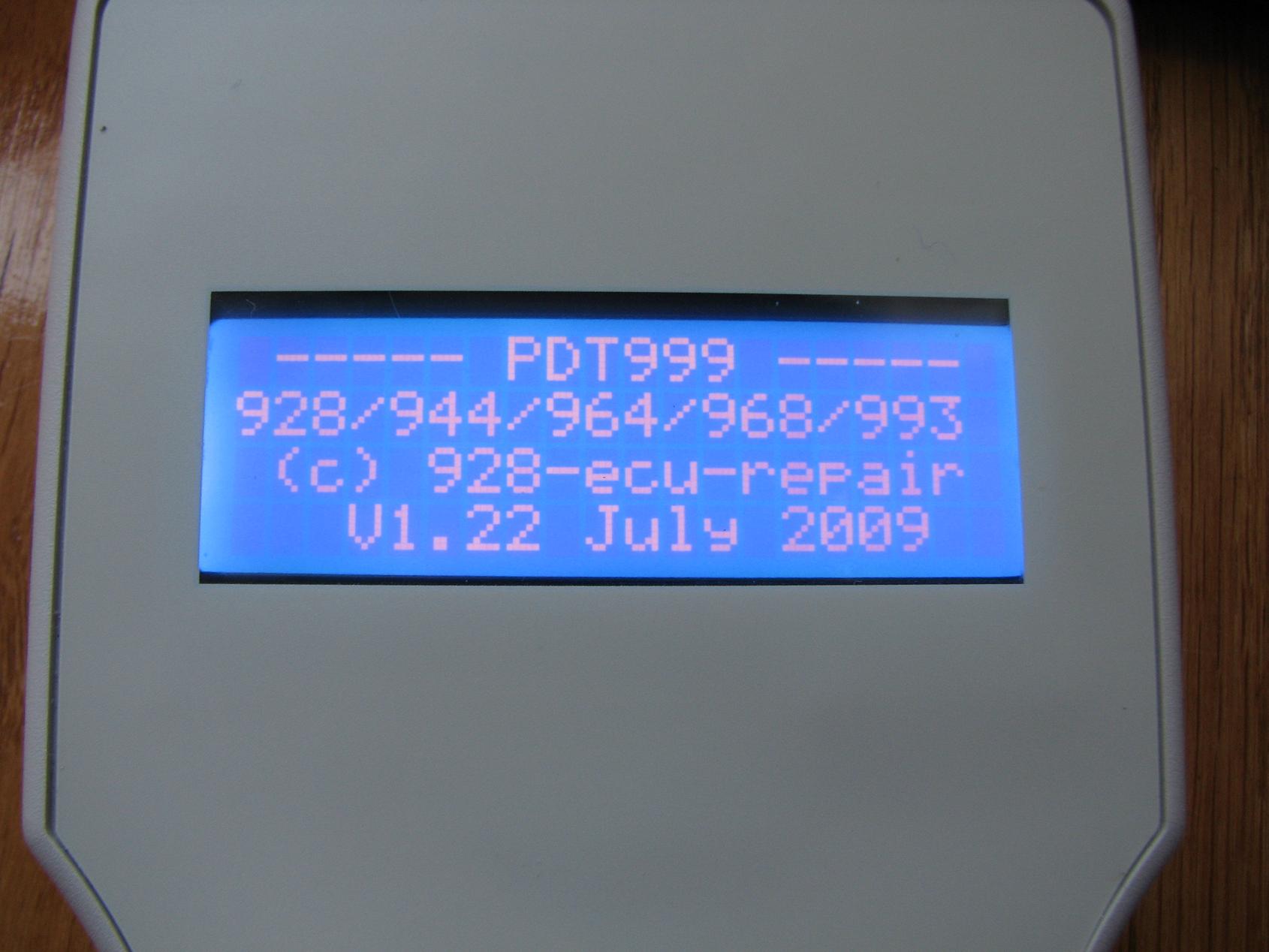

    Startup screen.

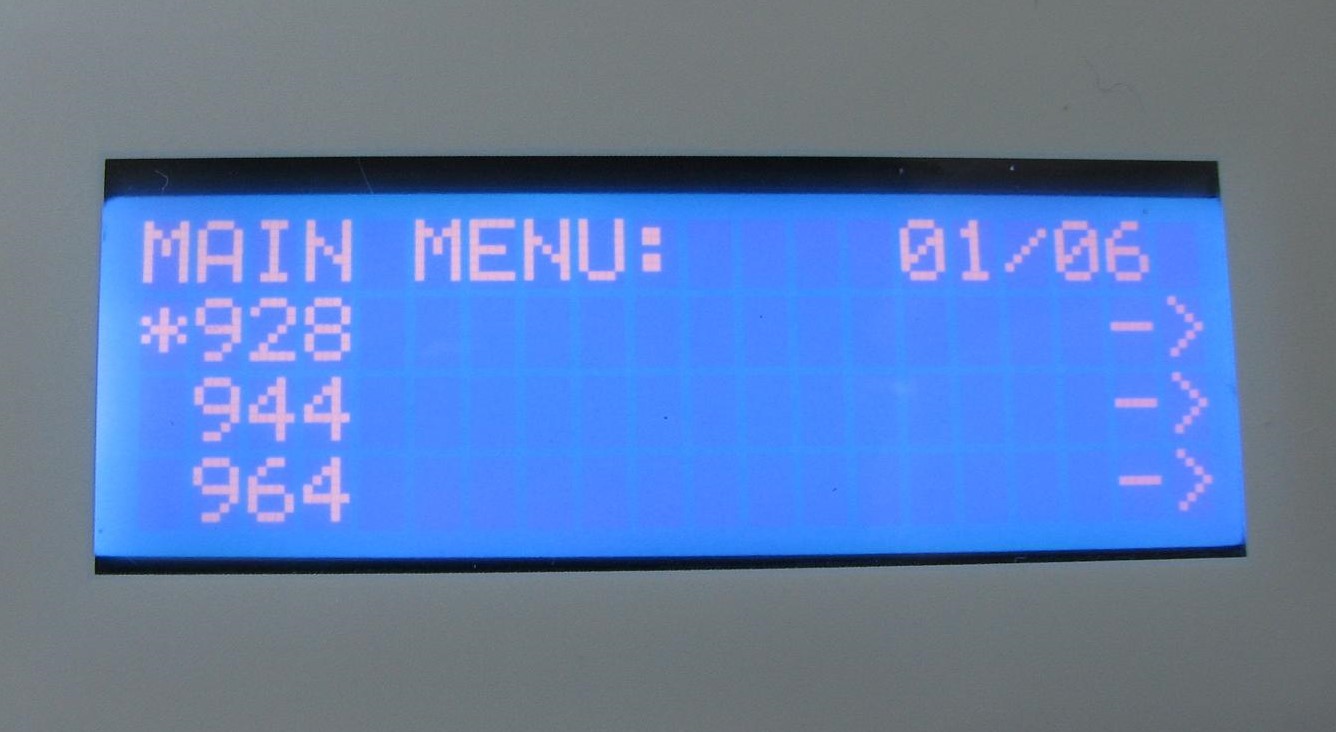

    Main menu.

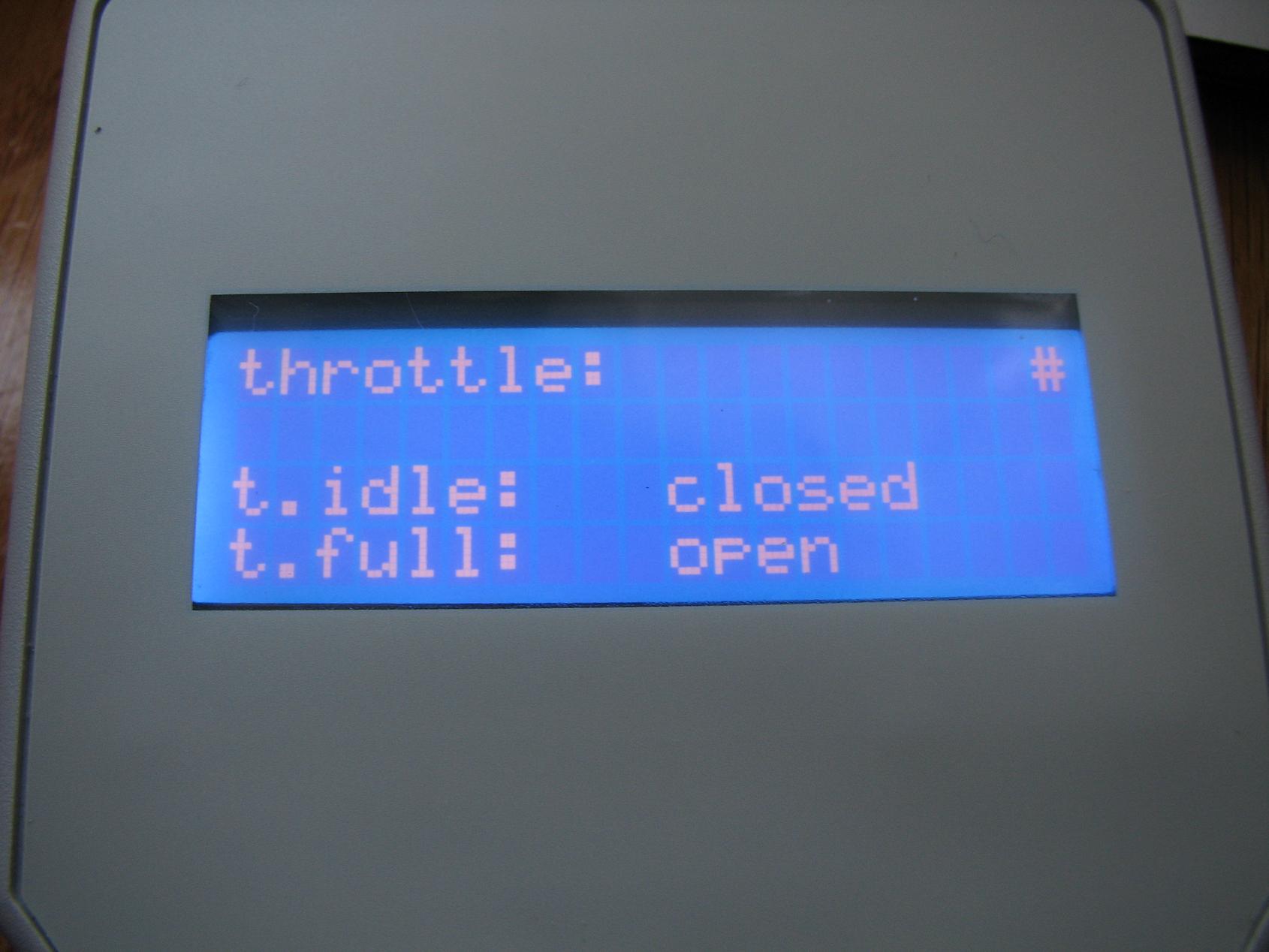

    Input signals 928 LH-ECU.

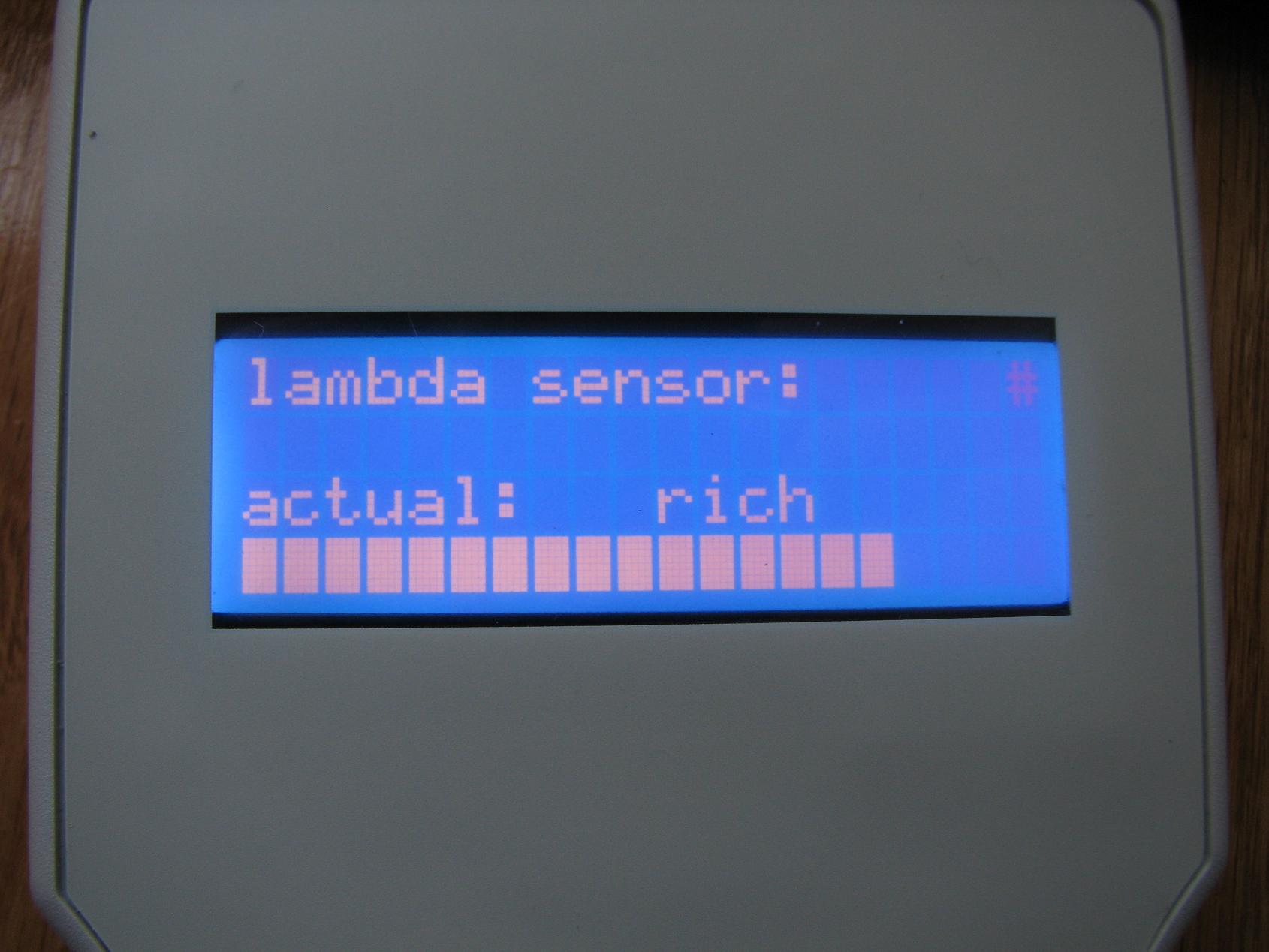

    Lambda (oxy).

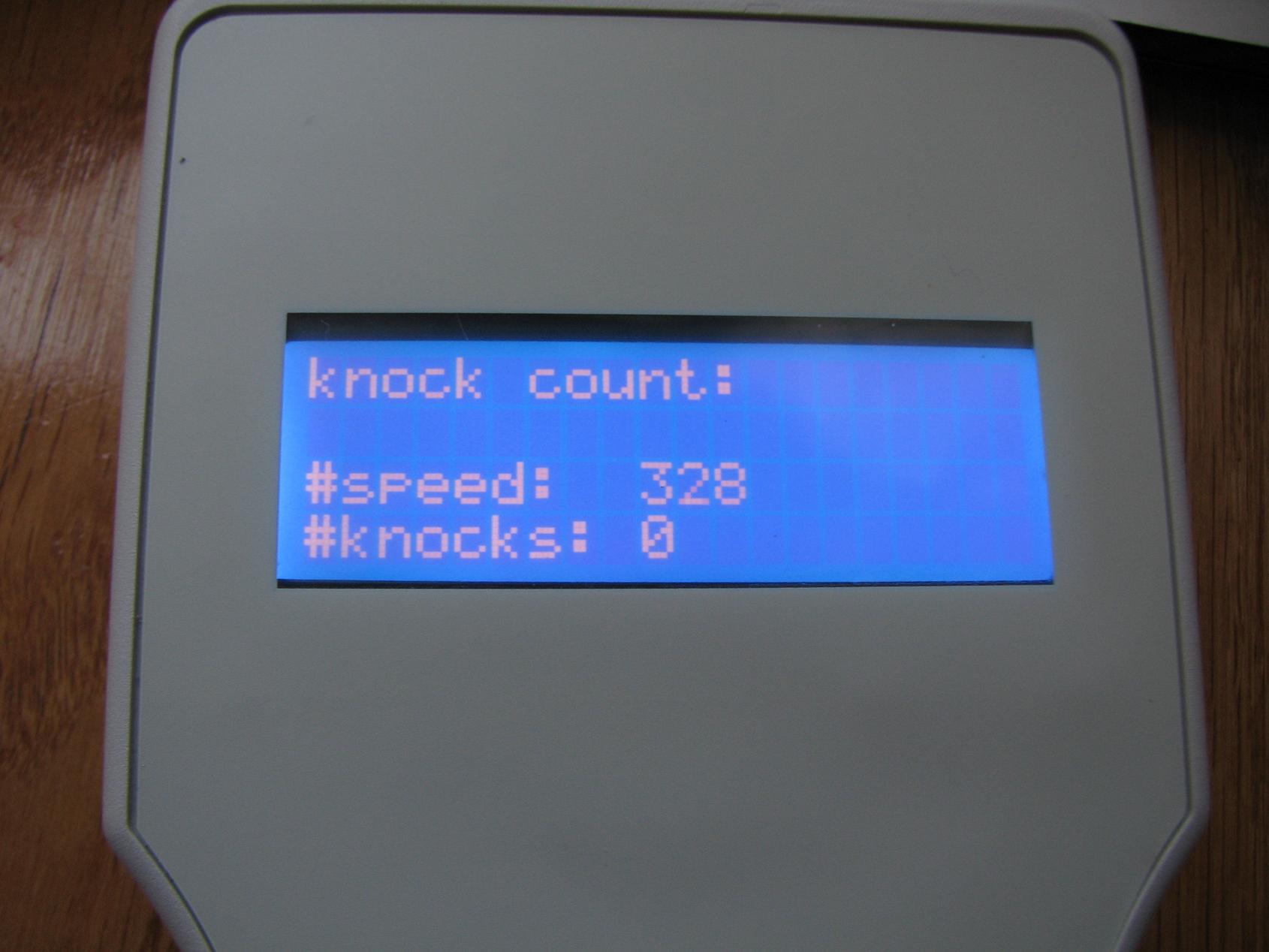

    Knock count.

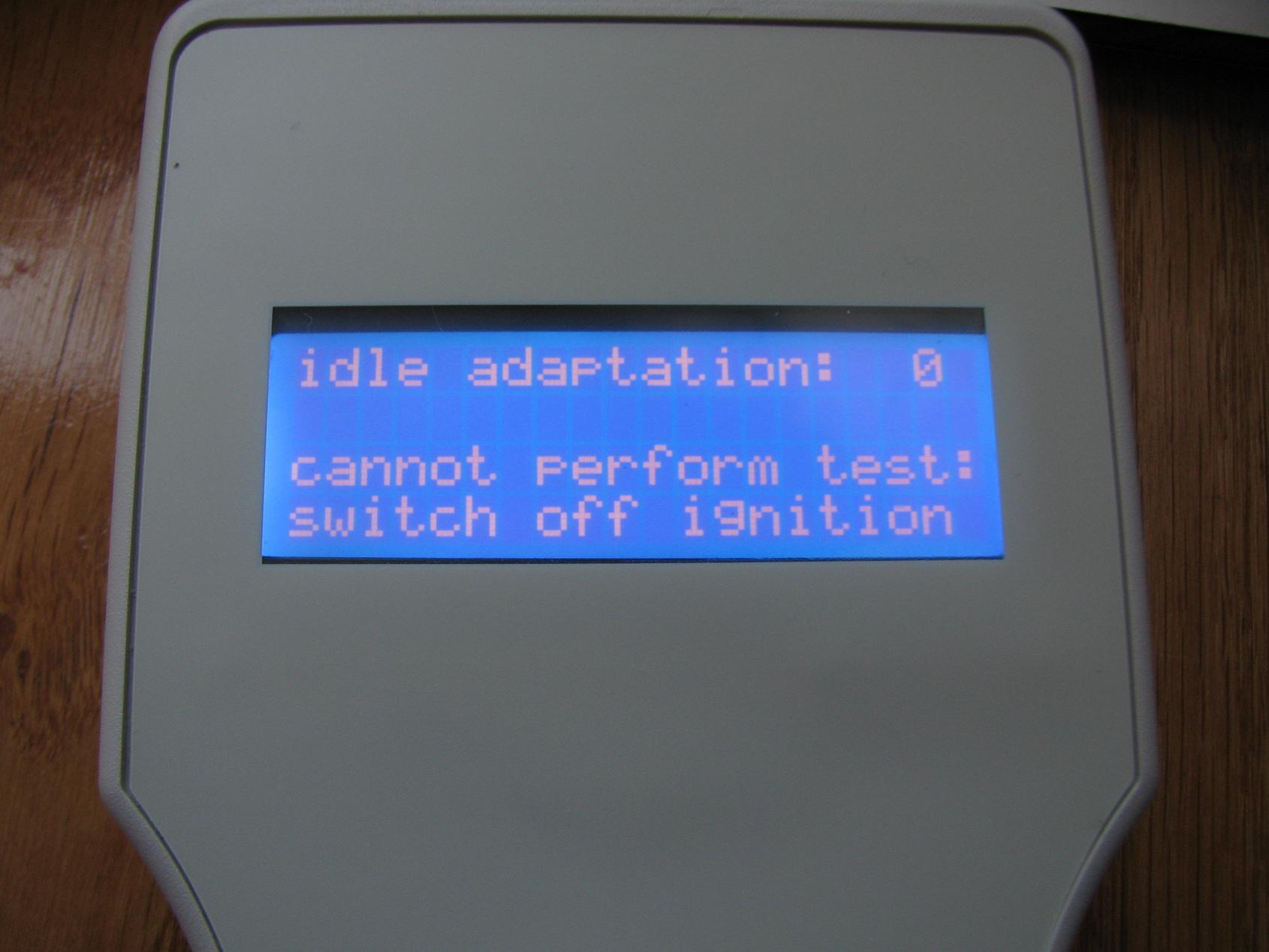

    Idle adaptation.

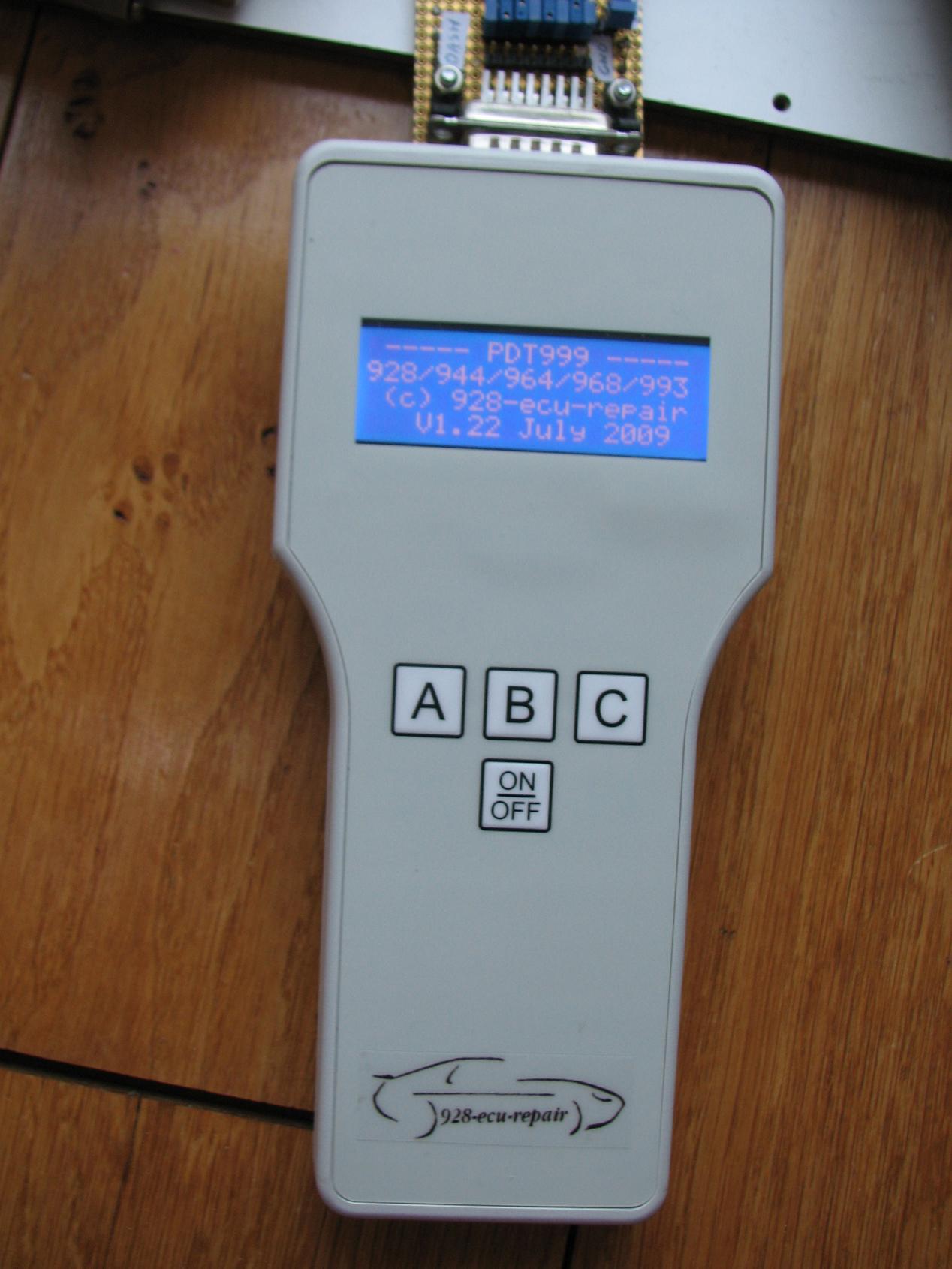

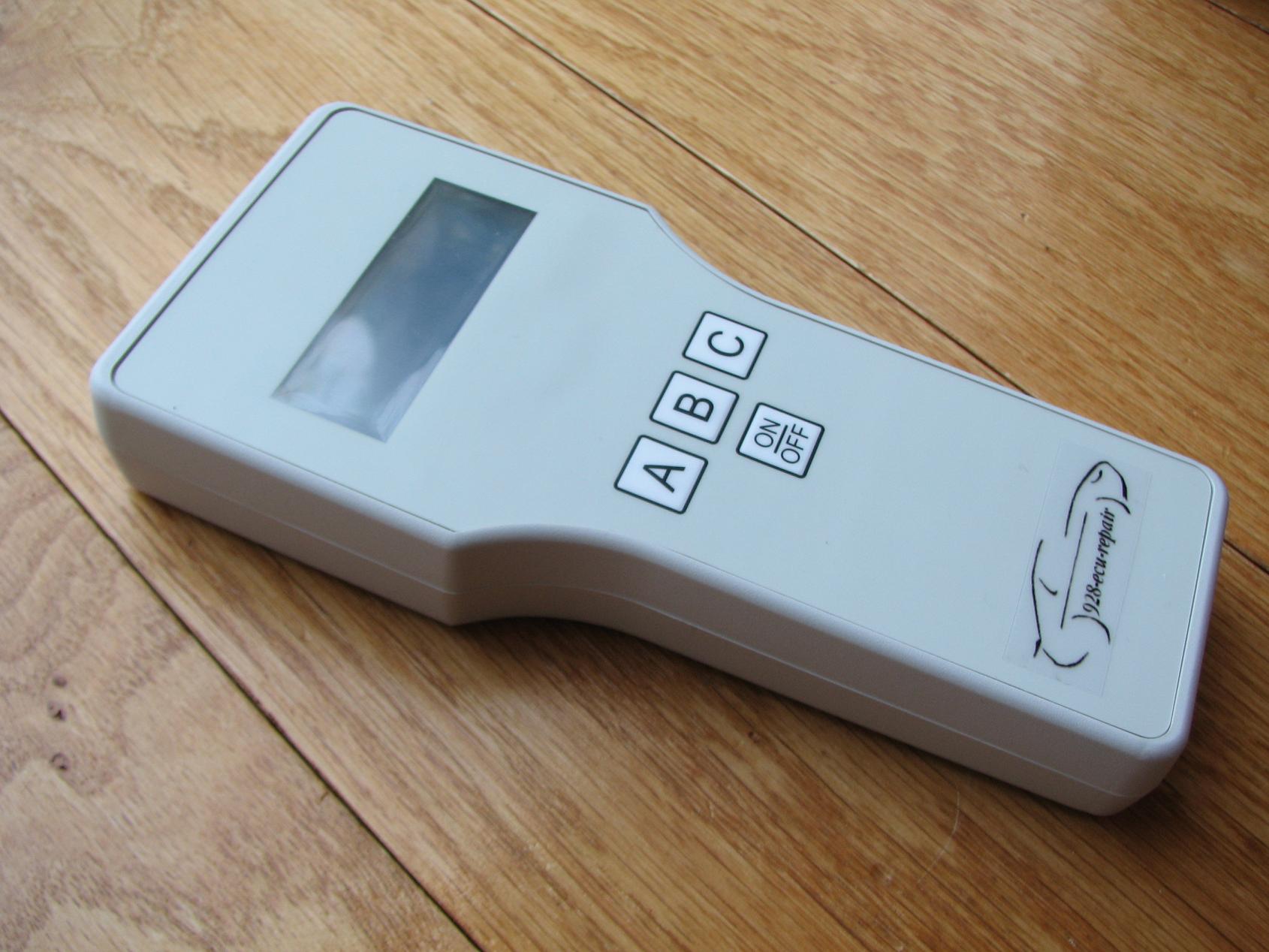

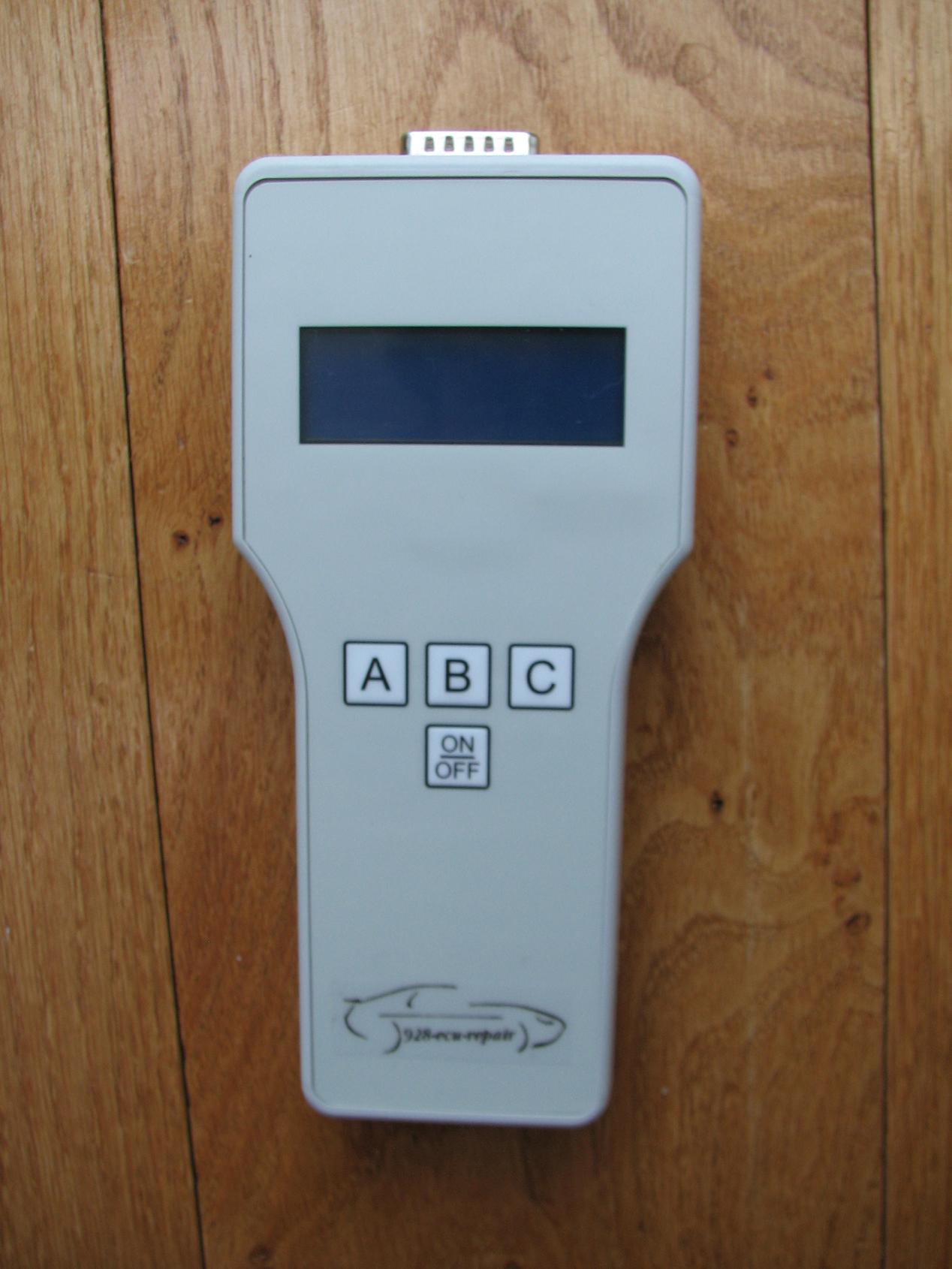

    Pdt999.



    Startup.

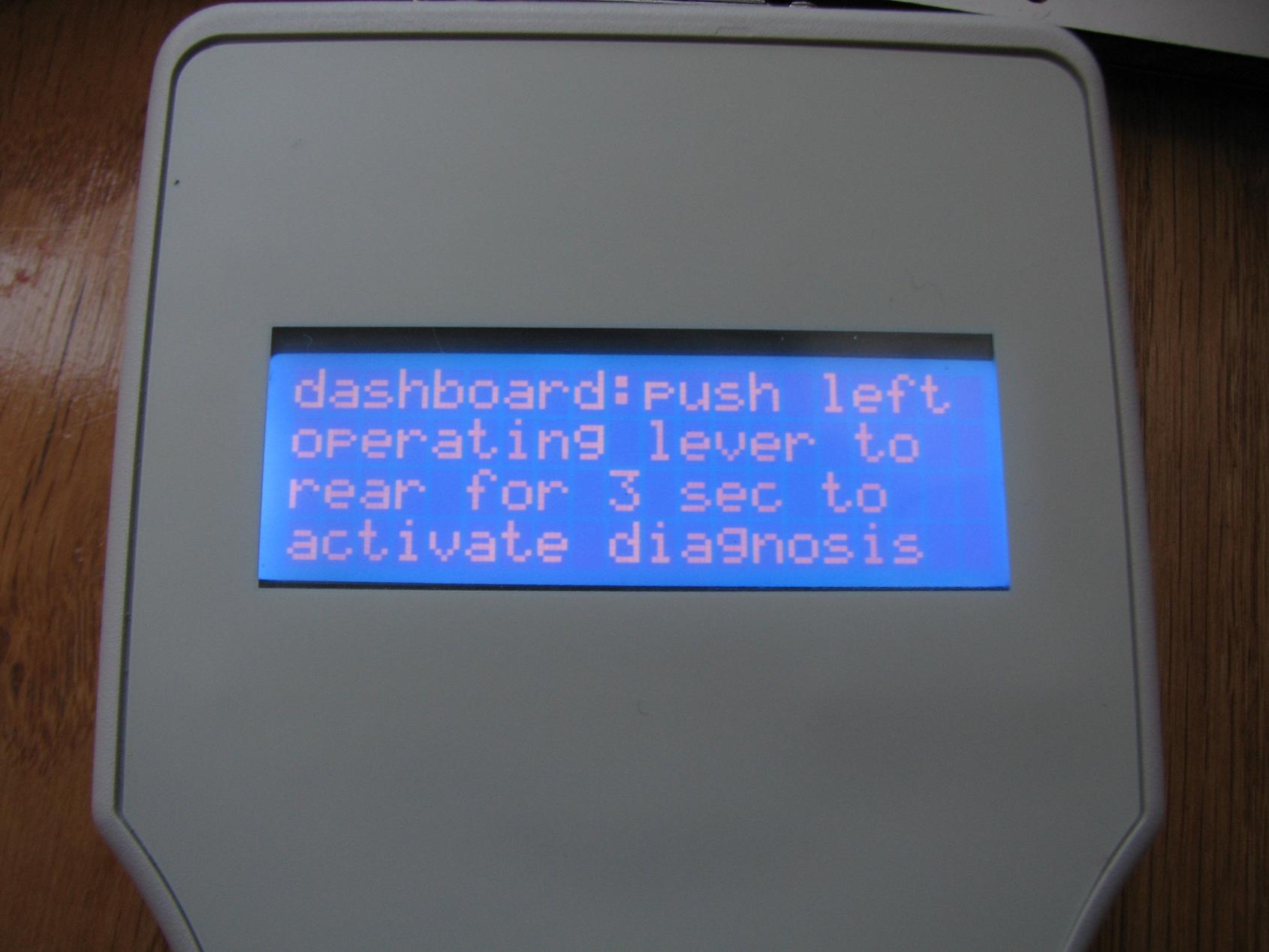

    Enable 928 dashboard.
